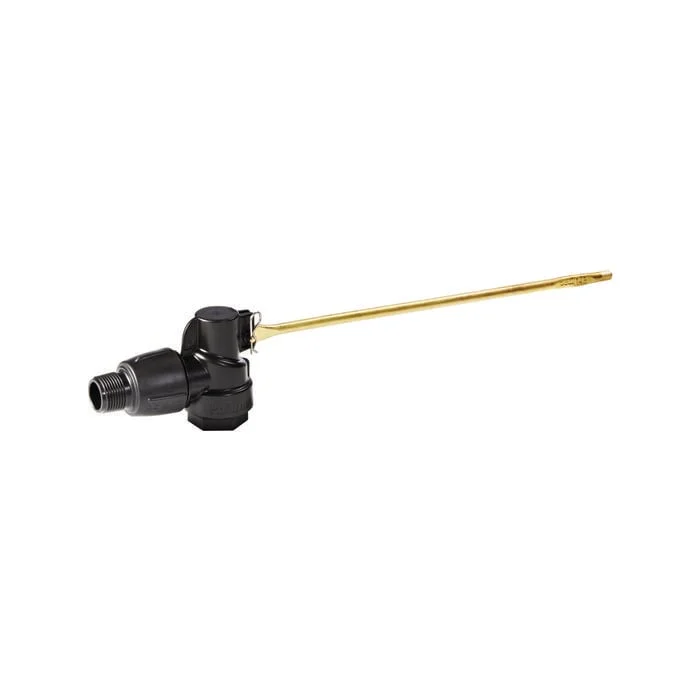

Philmac Versaphil 3/4" & 1"

• The lever assembly and pivot pin are manufactured from DZR (dezincification resistant) brass. This means they resist corrosion. This prevents the weakening of the brass leading to premature failure.
• Easy Disassembly: A simple pin and stainless R-Pin hold the lever assembly in place. The pins can be removed without any tools, which makes lever adjustment, installation and maintenance a simple task and saves time and effort.
• Dual Inlet: The valves come standard with a ¾” BSP male inlet and a 1” BSP male inlet. This means one valve suits troughs with ¾” or 1” connections. This means less valves need to be stocked.
• Across the range of inlet pressures the valve has a high flow. This means it can fill troughs quickly thus providing sufficient water to meet the demands of the stock.
• The combination of body design, lever length and float size provide high pressure shut-off. With an inlet pressure up to 1200 kPa the valve will not leak. This makes it suited to installations such as at the bottom of hills.

Highly versatile float valve, suited to a wide range of agricultural applications in both concrete and thin-walled poly troughs and tanks up to 1,500 litres. Standard BSP or Long Parallel Thread Options. Available as standard BSP or long parallel (fastening) thread with back-nut, making this valve ideally suited to either concrete or poly and thin-walled troughs and tanks.
